Complete Turn-key washing systems C.I.P.

  • 1, 2, 3 or 4 stainless steel AISI 316 tank versions available for: soda – acid – water – (sterilizer).
  • Automatic units for reset of detergents through dosing of concentrated agents.
  • Automatic temperature control of the washing solutions.
  • Automatic control of solutions’ conductivity.
  • Heat exchanger for solutions’ heating through steam.
  • Centrifugal pump 25.000lt/h; head 7 bar.
  • Automatic manifolds, stainless steel AISI 316, for delivery/recovery of the solutions    towards the machines to be washed.

Washing & Sanitization

Washing system with hydrodynamic (max pressure 30 bar) or motorized (max pressure 110 bar) heads, connectable to C.I.P. system.

Automatic weighing system through loading cells, for the optimum concentration of the disinfectant solution.

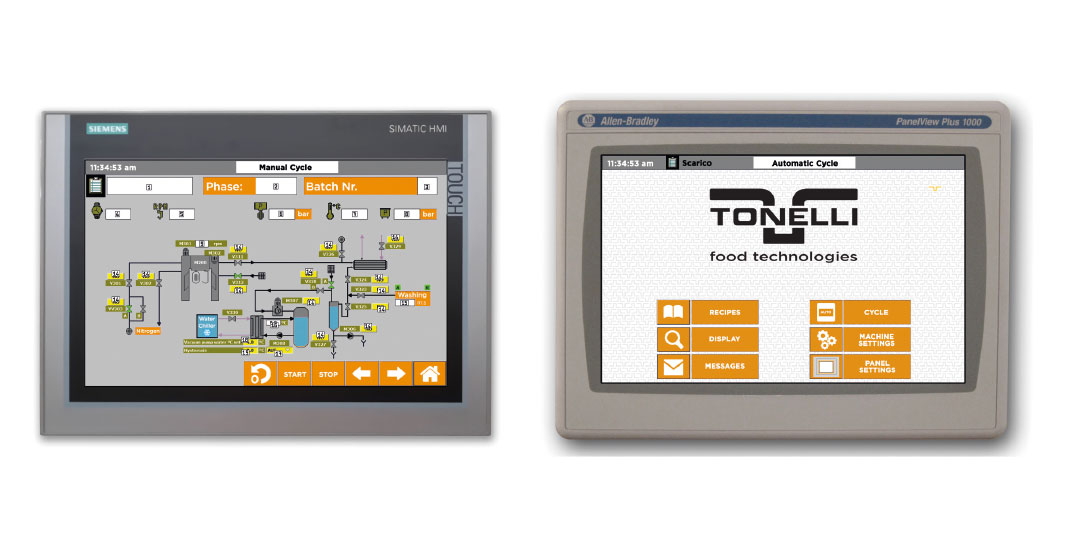

Computerized management system

All recipe stages are managed by TONELLI in-house designed software, combined with sophisticated Allen Bradley, Siemens, Telemecanique and Omron PLC systems with Panel View and Touch Panel for complete automation of the mixing process.

More than 50 recipes, with relative process parameters (time, speed, air pressure, stages for adding ingredients, etc.) can easily be stored from the control panel. A complete graphic interface with icons makes the machine’s operating functions extremely user-friendly, even for non-experts.
